Topic: Separating techniques

1:06 (Triple only) understand how to plot and interpret solubility curves

The solubility of solids changes as temperature changes. This can be plotted on a solubility curve.

Image result for solubility curve

The salts shown on this graph are typical: the solubility increases as temperature increases.

For example, the graph above shows that in 100g of water at 50⁰C the maximum mass of potassium nitrate (KNO₃) which will dissolve is 80g.

However, if the temperature were 80⁰C a mass of 160g of potassium nitrate (KNO₃) would dissolve in 100g of water.

1:07 (Triple only) practical: investigate the solubility of a solid in water at a specific temperature

At a chosen temperature (e.g. 40⁰C) a saturated solution is created of potassium nitrate (KNO₃) for example.

Some of this solution (not any residual solid) is poured off and weighed. The water is then evaporated from this solution to leave a residue of potassium nitrate which is then weighed.

The difference between the two measured masses is the mass of evaporated water.

The solubility, in grams per 100g of water, is equal to 100 times the mass of potassium nitrate residue divided by the mass of evaporated water.

 solubility (g/100g) = \frac{mass Of Solute}{mass Of Solvent} \times 100

1:09 understand that a pure substance has a fixed melting and boiling point, but that a mixture may melt or boil over a range of temperatures

Pure substances, such as an element or a compound, melt and boil at fixed temperatures.

However, mixtures melt and boil over a range of temperatures.

Example: although pure water boils at 100⁰C, the addition of 10g of sodium chloride (NaCl) to 1000cm³ of water will raise the boiling point to 100.2⁰C.

Example: although pure water melts at 0⁰C, the addition of 10g of sodium chloride (NaCl) to 1000cm³ of water will lower the melting point to -0.6⁰C.

1:10 describe these experimental techniques for the separation of mixtures: simple distillation, fractional distillation, filtration, crystallisation, paper chromatography

Simple distillation

This method is used to separate a liquid from a solution. For example: separating water from salt water.

The salt water is boiled. The water vapour condenses back into a liquid when passed through the condenser. The salt is left behind in the flask.

Note: cold water is passed into the bottom of the condenser and out through the top so that the condenser completely fills up with water.



Fractional distillation

This method is used to separate a mixture of different liquids that have different boiling points. For example, separating alcohol from a mixture of alcohol and water.

Water boils at 100oC and alcohol boils at 78oC. By using the thermometer to carefully control of temperature of the column, keeping it at 78oC, only the alcohol remains as vapour all the way up to the top of the column and passes into the condenser.

The alcohol vapours then condense back into a liquid.





Filtration

This method is used to separate an insoluble solid from a liquid. For example: separating sand from a mixture of sand and water.

The mixture is poured into the filter paper. The sand does not pass through and is left behind (residue) but the water passes through the filter paper and is collected in the conical flask (filtrate).





Crystallisation

This method is used to obtain a salt which contains water of crystallisation from a salt solution. For example: hydrated copper sulfate crystals (CuSO4.5H2O(s)) from copper sulfate solution (CuSO4(aq)).

Gently heat the copper sulfate solution in an evaporating basin until a hot saturated solution forms. Leave in a warm place to allow the hydrated copper sulfate crystals to form. Remove the crystals by filtration and wash with distilled water. Dry by leaving in a warm place.

If instead the solution is heated until all the water evaporates, you would produce a powder of anhydrous copper sulfate (CuSO4(s)).



Paper chromatography

This method can be used to separate the parts of a mixture into their components. For example, the different dyes in ink can all be separated and identified.

The coloured mixture to be separated (e.g. a food dye) is dissolved in a solvent like water or ethanol and carefully spotted onto the chromatography paper on the baseline, which is drawn in pencil so it doesn’t ‘run or smudge’.

The paper is carefully dipped into the solvent and suspended so the baseline is above the liquid solvent, otherwise all the spots would dissolve in the solvent. The solvent is absorbed into the paper and rises up it as it soaks into the paper. The choice of solvent depends on the solubility of the dye. If the dye does not dissolve in water then normally an organic solvent (e.g. ethanol) is used.

As the solvent rises up the paper it will carry the dyes with it. Each different dye will move up the paper at different rates depending on how strongly they stick to the paper and how soluble they are in the solvent.

1:11 understand how a chromatogram provides information about the composition of a mixture

Paper chromatography can be used to investigate the composition of a mixture.

A baseline is drawn on the paper. The mixture is spotted onto the baseline alongside known or standard reference materials. The end of the paper is then put into a solvent which runs up the paper and through the spots, taking some or all of the dyes with it.

Different dyes will travel different heights up the paper.

The resulting pattern of dyes is called a chromatogram.

In the example shown, the mixture is shown to contain the red, blue and yellow dyes. This can be seen because these dots which resulted from the mixture have travelled the same distance up the paper as have the red, blue and yellow standard reference materials.

1:12 understand how to use the calculation of Rf values to identify the components of a mixture

When analysing a chromatogram, the mixture being analysed is compared to standard reference materials by measuring how far the various dyes have travelled up the paper from the baseline where they started.

For each dye, the Rf value is calculated. To do this, 2 distances are measured:

  • The distance between the baseline and the dye
  • The distance between the baseline and the solvent front, which is how far the solvent has travelled from the baseline

The Rf value is calculated as follows:

 R_f=\frac{distance\:of\:dye\:from\:baseline }{distance\:of\:solvent\:front\:from\:baseline}

If the Rf value of one of the components of the mixture equals the Rf value of one of the standard reference materials then that component is know to be that reference material.

Note that because the solvent always travels at least as far as the highest dye, the Rf value is always between 0 and 1.

Dyes which are more soluble will have higher Rf values than less soluble dyes. In other words, more soluble dyes move further up the paper. The extreme case of this is for insoluble dyes which don’t move at all (Rf value = 0). The other aspect affecting how far a dye travels is the affinity that dye has for the paper (how well it ‘sticks’ to the paper).

1:13 practical: investigate paper chromatography using inks/food colourings

  1. A pencil line (baseline) is drawn 1cm from the bottom of the paper. Pencil will not dissolve in the solvent, but if ink were used instead it might dissolve and interfere with the results of the chromatography.
  2. A spot of each sample of dye is dropped at different points along the baseline.
  3. The paper is suspended in a beaker which contains a small amount of solvent. The bottom of the paper should be touching the solvent, but the baseline with the dyes should be above the level of the solvent. This is important so the dyes don’t simply dissolve into the solvent in the beaker.
  4. A lid should cover the beaker so the atomosphere becomes saturated with the solvent. This is so the solvent does not evaporate from the surface of the paper.
  5. When the solvent has travelled to near the top of the paper, the paper is removed from the solvent and a pencil line drawn (and labelled) to show the level the solvent reached up the paper. This is called the solvent front.
  6. The chromatogram is then left to dry so that all the solvent evaporates.

Common solvents are water or ethanol. The choice of solvent depends on whether most of the dyes are soluble in that solvent.

1:25 write word equations and balanced chemical equations (including state symbols): for reactions studied in this specification and for unfamiliar reactions where suitable information is provided

Example:

Sodium (Na) reacts with water (H2O) to produce a solution of sodium hydroxide (NaOH) and hydrogen gas (H2).

Word equation:

     sodium + water –> sodium hydroxide + hydrogen

Writing the chemical equation

A chemical equation represents what happens in terms of atoms in a chemical reaction.

Step 1: To write a chemical equation we need to know the chemical formulae of the substances.

     Na + H2O –> NaOH + H2

Step 2: The next step is to balance the equation: write a large number before each compound so the number of atoms of each element on the left hand side (reactants) matches the number on the right (products). This large number is the amount of each compound or element.

During this balancing stage the actual formulas for each compound must not be changed. Only the number of each compound changes.

     2Na + 2H2O –> 2NaOH + H2

If asked for an equation, the chemical equation must be given.



State symbols are used to show what physical state the reactants and products are in.

State symbolsPhysical state
(s)Solid
(l)Liquid
(g)Gas
(aq)Aqueous solution (dissolved in water)

Example:

A solid piece of sodium (Na) reacts with water (H2O) to produce a solution of sodium hydroxide (NaOH) and hydrogen gas (H2).

     2Na(s) + 2H2O(l) –> 2NaOH(aq) + H2(g)

2:32 know that bases can neutralise acids

Metal oxides, metal hydroxides and ammonia (NH₃) are called bases.

Bases neutralise acids by combining with the hydrogen ions in them.

The key reaction is:

   acid             +             base             →            salt             +             water

An example of this is:

   sulfuric acid   +   copper oxide   →   copper sulfate   +   water

   H₂SO₄          +          CuO          →          CuSO₄          +          H₂O

2:37 describe the reactions of hydrochloric acid, sulfuric acid and nitric acid with metals, bases and metal carbonates (excluding the reactions between nitric acid and metals) to form salts

Acid reactions summary

         alkali      +      acid      →      water      +      salt

         base      +      acid      →      water      +      salt

         carbonate      +      acid      →      water      +      salt      +      carbon dioxide

         metal   +   acid   →   salt   +   hydrogen

To assist remembering this list, many pupils find it useful to remember this horrid looking but very effective mnemonic:

         AAWS

         BAWS

         CAWS CoD

         MASH

Acids are a source of hydrogen ions (H⁺) when in solution. When the hydrogen in an acid is replaced by a metal, the compound is called a salt. The name of the salt depends on the acid used. For example if sulfuric acid is used then a sulfate salt will be formed.

Parent acidFormulaSaltFormula ion
sulfuric acidH2SO4sulfateSO42-
hydrochloric acidHClchlorideCl-
nitric acidHNO3nitrateNO3-



Acid + Alkali   and   Acid + Base

A base is a substance that can neutralise an acid, forming a salt and water only.

Alkalis are soluble bases. When they react with acids, a salt and water is formed. The salt formed is often as a colourless solution. Alkalis are a source of hydroxide ions (OH⁻) when in solution.

         alkali      +      acid      →      water      +      salt

         base      +      acid      →      water      +      salt

Examples of acid + alkali reactions:

  •          sodium hydroxide   +   hydrochloric acid   →   sodium chloride   +   water
  •          NaOH (aq)         +         HCl (aq)         →         NaCl (aq)         +         H₂O (l)
  •          potassium hydroxide   +   sulfuric acid   →   potassium sulfate   +   water
  •          2KOH (aq)         +         H₂SO₄ (aq)         →         K₂SO₄ (aq)         +         2H₂O (l)

Example of an acid + base reaction:

         CuO (s)         +         H₂SO₄ (aq)         →         CuSO₄ (aq)         +         H₂O (l)



Acid + Carbonate

         carbonate      +      acid      →      water      +      salt      +      carbon dioxide

A carbonate is a compound made up of metal ions and carbonate ions. Examples of metal carbonates are sodium carbonate, copper carbonate and magnesium carbonate.

When carbonates react with acids, bubbling is observed which is the carbon dioxide being produced. If the acid is in excess the carbonate will disappear.

Examples of acid + carbonate reactions:

  •          calcium carbonate   +   hydrochloric acid   →   calcium chloride   +   water   +   carbon dioxide
  •          CaCO₃ (s)         +         2HCl (aq)         →         CaCl₂ (aq)         +         H₂O (l)         +         CO₂ (g)
  •          potassium carbonate   +   hydrochloric acid   →   potassium chloride   +   water   +   carbon dioxide
  •          K₂CO₃ (aq)         +         2HCl (aq)         →         2KCl (aq)         +         H₂O (l)         +         CO₂ (g)



Acid + Metal

         metal   +   acid   →   salt   +   hydrogen

Metals will react with an acid if the metal is above hydrogen in the reactivity series.

When metals react with acids, bubbling is observed which is the hydrogen being produced. If the acid is in excess the metal will disappear.

Examples of acid + metal reactions:

  •          magnesium   +   sulfuric acid   →   magnesium sulfate   +   hydrogen
  •          Mg (s)         +         H₂SO₄ (aq)         →         MgSO₄ (aq)         +         H₂ (g)
  •          aluminium   +   hydrochloric acid   →   aluminium chloride   +   hydrogen
  •          2Al (s)         +         6HCl (aq)         →         2AlCl₃ (aq)         +         3H₂ (g)
  •          copper   +   hydrochloric acid   →   no reaction (since copper is below hydrogen in the reactivity series)

2:38 know that metal oxides, metal hydroxides and ammonia can act as bases, and that alkalis are bases that are soluble in water

A base is a substance that neutralises an acid by combining with the hydrogen ions in them to produce water.

A base usually means a metal oxide, a metal hydroxide or ammonia.

Alkalis are bases which are soluble in water.



Some metal oxides are soluble in water and react with it to form solutions of metal hydroxides. For example:

Na₂O (s)         +         H₂O (l)         →         2NaOH (aq)

Apart from this and other group 1 oxides (such as potassium oxide) most other metal oxides are not soluble in water.

One exception is calcium oxide which does dissolve slightly in water to form calcium hydroxide (known as limewater):

CaO (s)         +         H₂O (l)         →         Ca(OH)₂ (aq)



Ammonia is another base. Ammonia reacts with water to form ammonium ions and hydroxide ions:

NH₃ (aq)         +         H₂O (l)         ⇋         NH₄⁺ (aq)         +         OH⁻ (aq)



All the solutions produced here contain hydroxide ions (OH⁻) so they are all alkalis.





2:42 practical: prepare a sample of pure, dry hydrated copper(II) sulfate crystals starting from copper(II) oxide

Excess Solid Method:

Preparing pure dry crystals of copper sulfate (CuSO4) from copper oxide (CuO) and sulfuric acid (H2SO4)

StepExplanation
Heat acid (H2SO4) in a beakerSpeeds up the rate of reaction
Add base (CuO) until in excess (no more copper oxide dissolves) and stir with glass rodNeutralises all the acid
Filter the mixture using filter paper and funnelRemoves any excess copper oxide
Heat the filtered solution (CuSO4)Hot saturated solution forms
Allow the solution to cool so that hydrated crystals formCopper(II) sulfate is less soluble in cold water
Remove the crystals by filtration and wash with distilled waterRemoves any impurities
Dry by leaving in a warm placeEvaporates the water



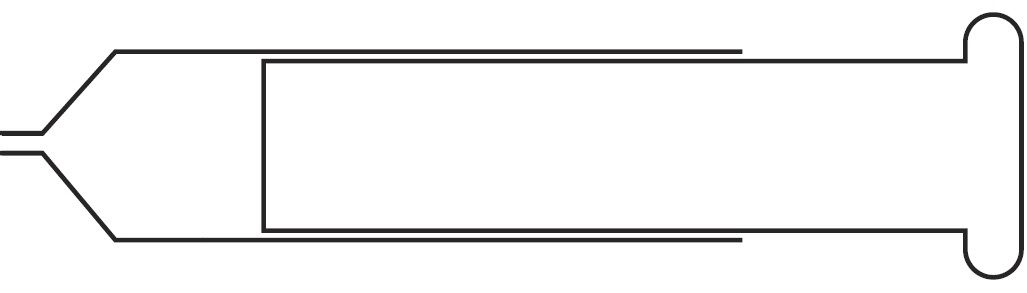

3:10 describe the effects of changes in surface area of a solid, concentration of a solution, pressure of a gas, temperature and the use of a catalyst on the rate of a reaction

Increasing the surface area of a solid increases the rate of a reaction.

Increasing the concentration of a solution increases the rate of a reaction.

Increasing the pressure of a gas increases the rate of a reaction.

Increasing the temperature increases the rate of a reaction.

Using a catalyst increases the rate of a reaction.
